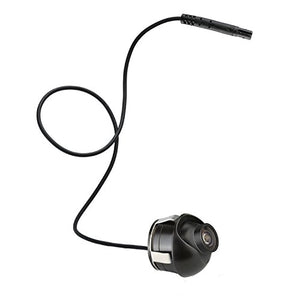

Vehicle Backup Camera, RAAYOO L008 18.5mm 360 Degree 360 Camera
Overview: This is a front/side/rear view camera, could be mounted on all types of vehicles. It comes with high definitions color CMOS image sensor to provide clear image to your monitor. Connect it with your monitor, you will see your blind spots where your mirrors can’t reach when driving forward or backing up, it really add an extra line of safety and drive smarter. System includes all the necessary cables and wiring for installation. Hightlights:This camera is a rear view camera with distance scale lines as default set for backing up. To use it as a front camera you would need to cut the green looped wire. To cancel the parking guide lines, cut the white looped wire. Cut green cable: Switch mirror (rear view) to normal image(front view) Cut white cable: Cancel Parking Guide Lines IMPORTANT 1: After cutting either the white or green wire for your configuration, you need to ground one side of the cut wire for the camera to convert. One side will give you a blank image and one side will give you your converted camera. Just tie one side of your cut wire to the black ground/earth wire and power it up. Other Specifications -Image sensor: Color CMOS -TV system: NTSC -Effective pixels: 628x586 pixels -Mechanism: Internal -Resolution: 480 TV line -Power supply: 12V only -Video output: RCA connector Package content: 1 x RAAYOO front/side/rear camera 1 x DC power cable(1.5m/4.5ft) 1 x Video cable(6m/18ft) 1 x RAAYOO User maual IMPORTMANT 2: For your installation convenience, it is suggested that get the camera aimed correctly before tighten the set screw of the camera to your vehicle.
- Front/Side/Rear View Camera,this camera has 2 thin wire on the camera cable, Green Wire:Mirror/non-Mirror switcher,White Wire:Distance scale Line (Yes/No) Switcher
- Simple and modest design and small size, Perfect suit for every car, like the original camera of your car
- 18.5mm Hole Drill Flush solid metal housing design with 360 degree rotatable lens for best view angel. Stealth mounting on your car.There is a set screw on the housing that you loosen up and turn the camera lens in the direction that you want and then tighten the set screw
- Universal compatibility -- Work well with your existing OEM or aftermarket LCD/TFT displays with standard RCA input,used for 12V vehicles like Car,SUV,Truck or Van
